- GCCWAM-PU4WBM0-000L
ODU GCCWAM-PU4WBM0-000L
ODU AMC HD RECEPT, STY C, SZ C,
ODU GCCWAM-PU4WBM0-000L technical specifications, attributes, parameters and parts with similar specifications to Silicon Labs SI1084-A-GM.
| Attribute Name | Attribute Value | |
|---|---|---|
| Category | Circular Connectors - Assemblies | |
| Manufacturer | ODU | |
| Series | ODU AMC® High-Density | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 4 (2 + 2 Power) | |
| Shell Size - Insert | 00 | |
| Shell Size, MIL | - | |
| Mounting Type | Panel Mount | |
| Mounting Feature | Bulkhead - Front Side Nut | |
| Termination | Solder Cup | |
| Fastening Type | Threaded | |
| Orientation | A | |
| Primary Material | Metal | |
| Shell Material | Brass |
| Attribute Name | Attribute Value | |
|---|---|---|
| Shell Finish | Ruthenium over Electroless Nickel | |
| Contact Finish - Mating | Gold | |
| Color | Black, Silver | |
| Ingress Protection | IP68 - Dust Tight, Waterproof | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Shielding | Shielded | |
| Current Rating (Amps) | 1A | |
| Voltage Rating | - | |
| Cable Opening | - | |
| Operating Temperature | -51°C ~ 125°C | |
| Backshell Material, Plating | - | |
| Contact Material | Copper Alloy | |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) | |
| Insert Material | Polyetheretherketone (PEEK) | |
| Applications | Industrial, Medical, Military |
Download datasheets and manufacturer documentation for GCCWAM-PU4WBM0-000L
| Resource Type | File Name |
|---|---|
| Datasheets | GCCWAM-PU4WBM0-000L |
| Environmental Information | ODU-USA Inc RoHS Cert ODU-USA Inc REACH |

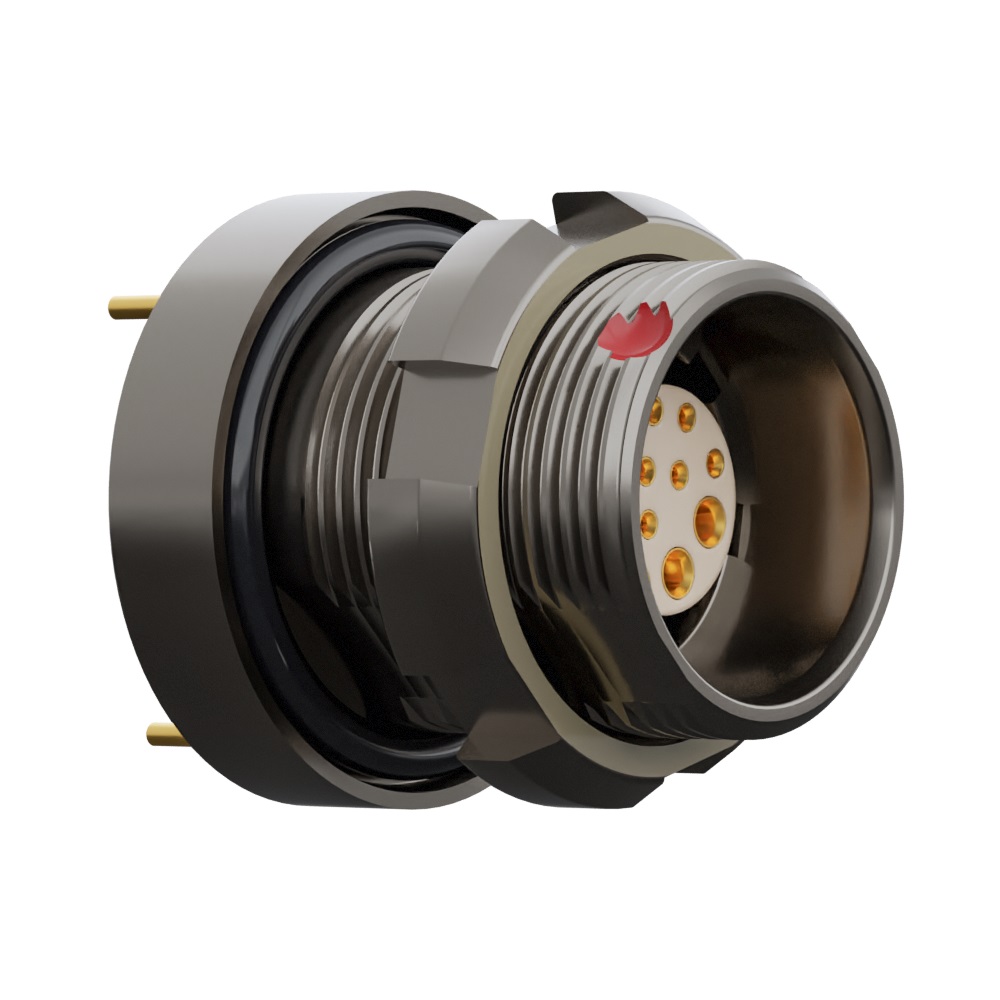

| 3D Drawings | GC_W_A_3D_IMAGE.JPG |
Environmental & export classifications of GCCWAM-PU4WBM0-000L
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4020 |
